RF 433 Mhz Universal Wireless Remote Control Switch 110V 220v 30A 3000M Remote Control for Electric Gate Light water pump
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Brand Name: Diese
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Origin: Mainland China
Wireless Communication: RF
Support APP: No
Certification: CE
Certification: FCC
Certification: RoHS
Frequency: 433 MHz
Channel: 1
Package: Yes
Model Number: Diese595 High power 433MHZ Universal Wireless Remote Control
External extension antenna: Include
Material: Plastic
Working Voltage: AC 90V-250V
Max Current: 30 Amp
Remote Control Distance: 3000m in the open area
Matching Mode: Intelligent Learning code 1527
Warranty: 1 year
Choice: yes
semi_Choice: yes
RF 433 Mhz Universal Wireless Remote Control Switch 110V 220v 30A 3000M Remote Control for Electric Gate Light water pump
Features:
1.High Quality Chip:
The product can be placed in an electrical box and can resist signal shielding when using an external antenna.
2.Strong Signal:
The product can penetrate walls and the buttons are sensitive and there is no need to operate around the receiver.
3.Long-Distance Remote Control:
Receiving distance up to 3000 meters.
Product Wiring Diagram

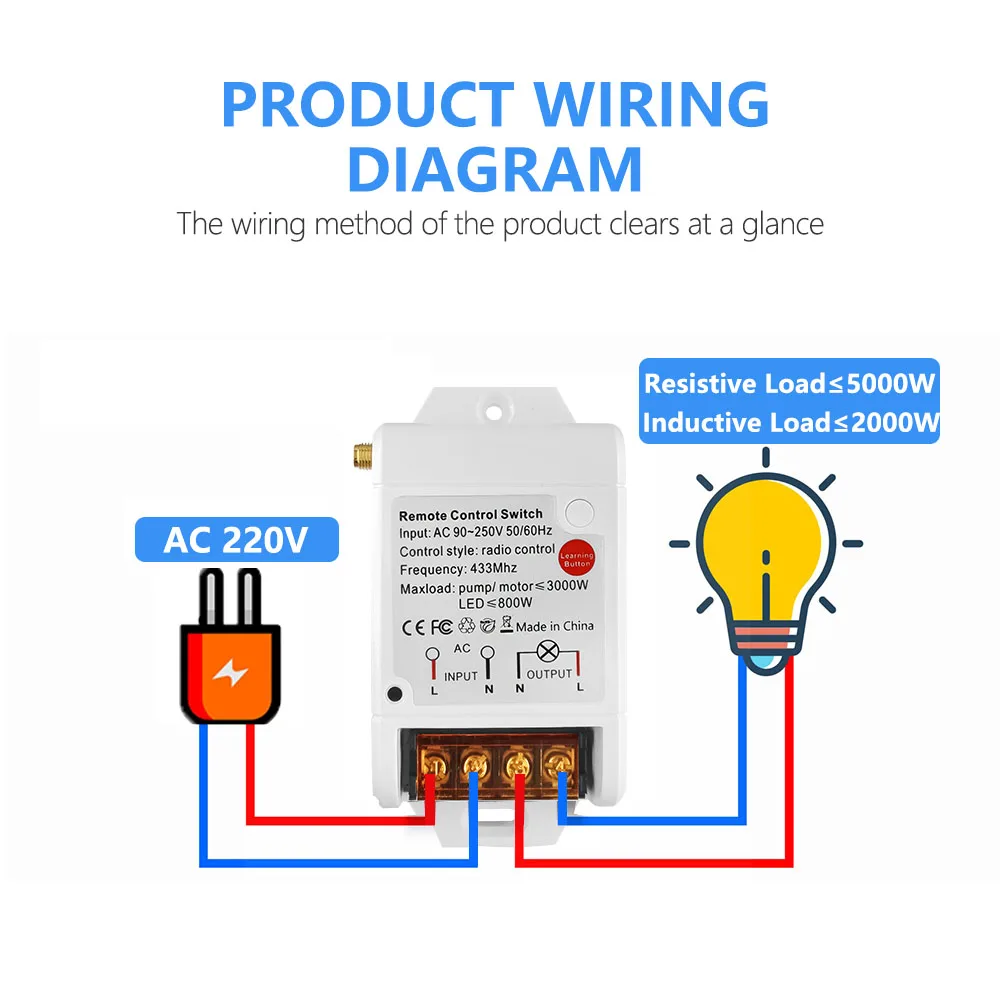

1.Simple Wiring Method (needs to be within the appropriate power range):

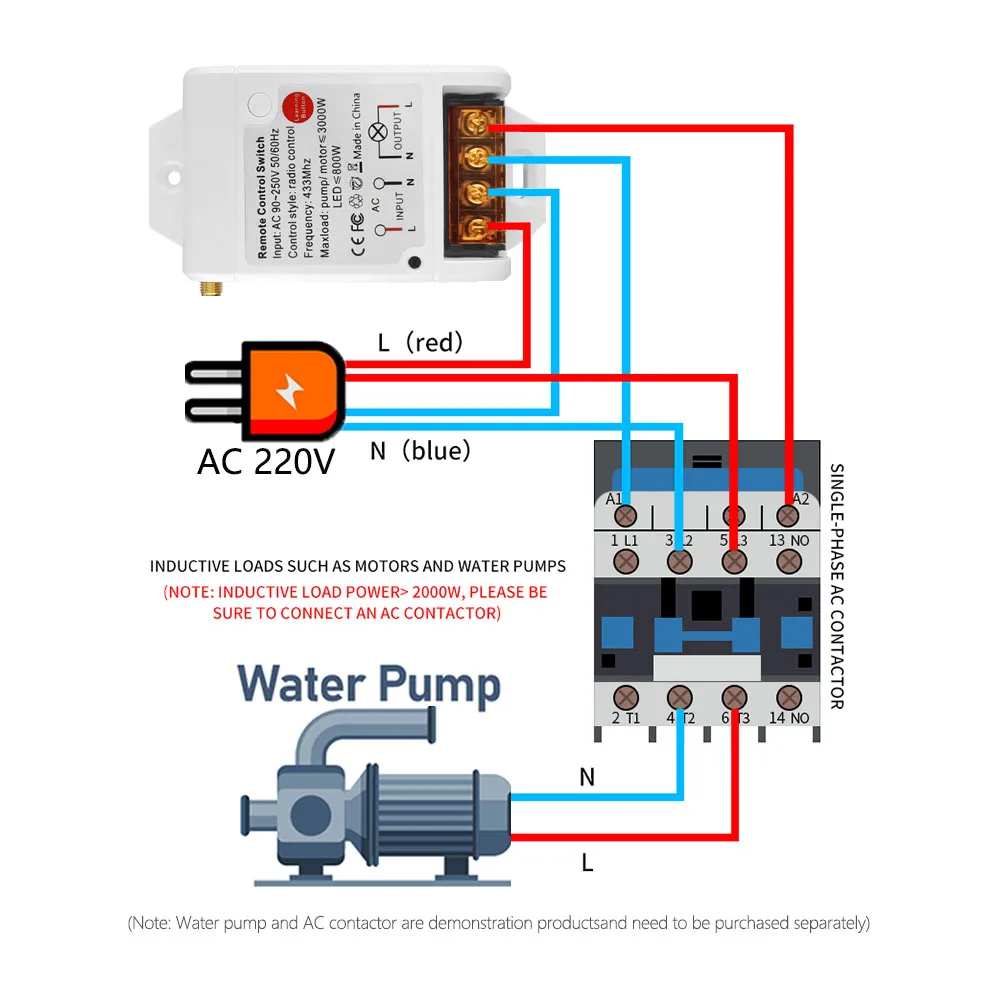

2. When the Inductive Load power is >2000W, be sure to connect the AC contactor for wiring. The specific connection methods are as follows:
(Note: Water pump and AC contactor are demonstration products and need to be purchased separately)

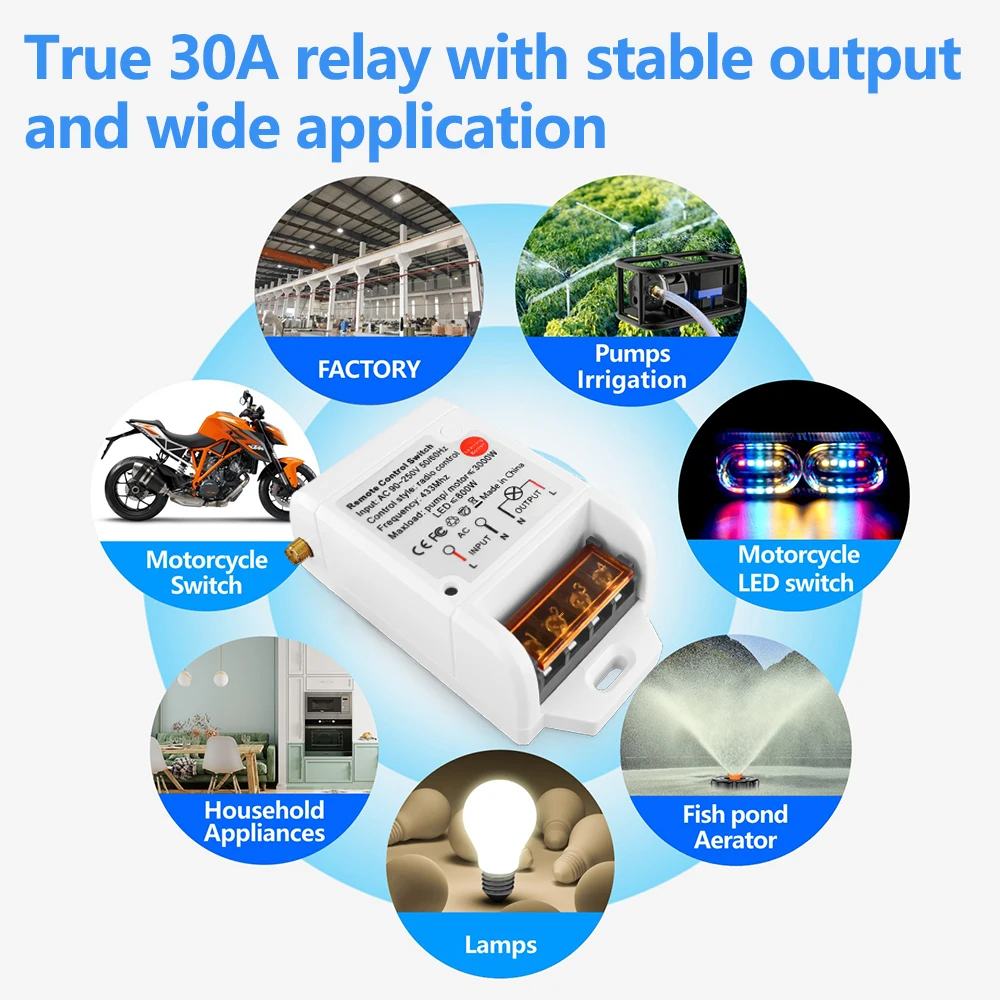

Product Application Area
Factory \ Farm \ Office \ Instrument;
Remote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission \ Electrical equipment.
2000W High-power, Wider Range of Application
Receiver Specification
--Working voltage : AC 90V~250V
--Max current: 30 A
--RF Frequency: 433Mhz
--Working temperature:-30~+80
--Receive sensitivity: >97dbm
--Transmitting distance: more than 3000 m ( open space)
--Remote storage:20pcs
--Support remote type: Learning code 1527code, Fixed code
--Size:110*55*35mm
Remote control Specification
-- Feature: slide cover,prevent accidental touch
--RF frequency : 433MHz
--Support encoding: 1527 Leaning code
--Size: 97*40*16mm
--Battery: 23A 12V 1pcs (include)

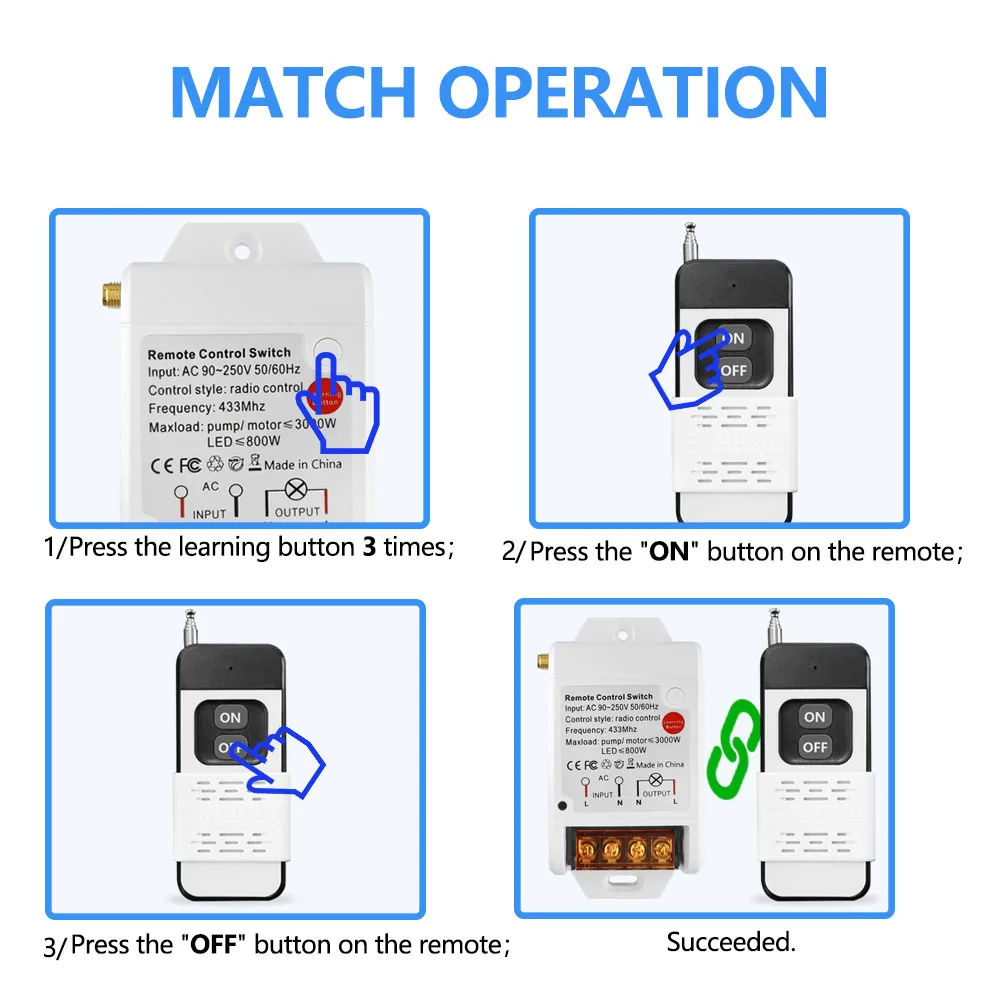

Remote mode 3 : Latched Mode
1\ Press the learning button on the Switch 3 times.
2\ Press the "On" button on the remote control, the indicator light flashes.
3\ Press the "Off" button on the remote control. Success.
