433MHz Wireless Remote Control Light Switch 10A Relay Controller Mini Round Button Wall Panel Switch For Lighting Led
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Brand Name: kebidu
Model Number: 433MHz Wireless Remote Control
Wireless Communication: RF
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Channel: 1
Frequency: 433 MHz
Origin: Mainland China
Choice: yes
semi_Choice: yes

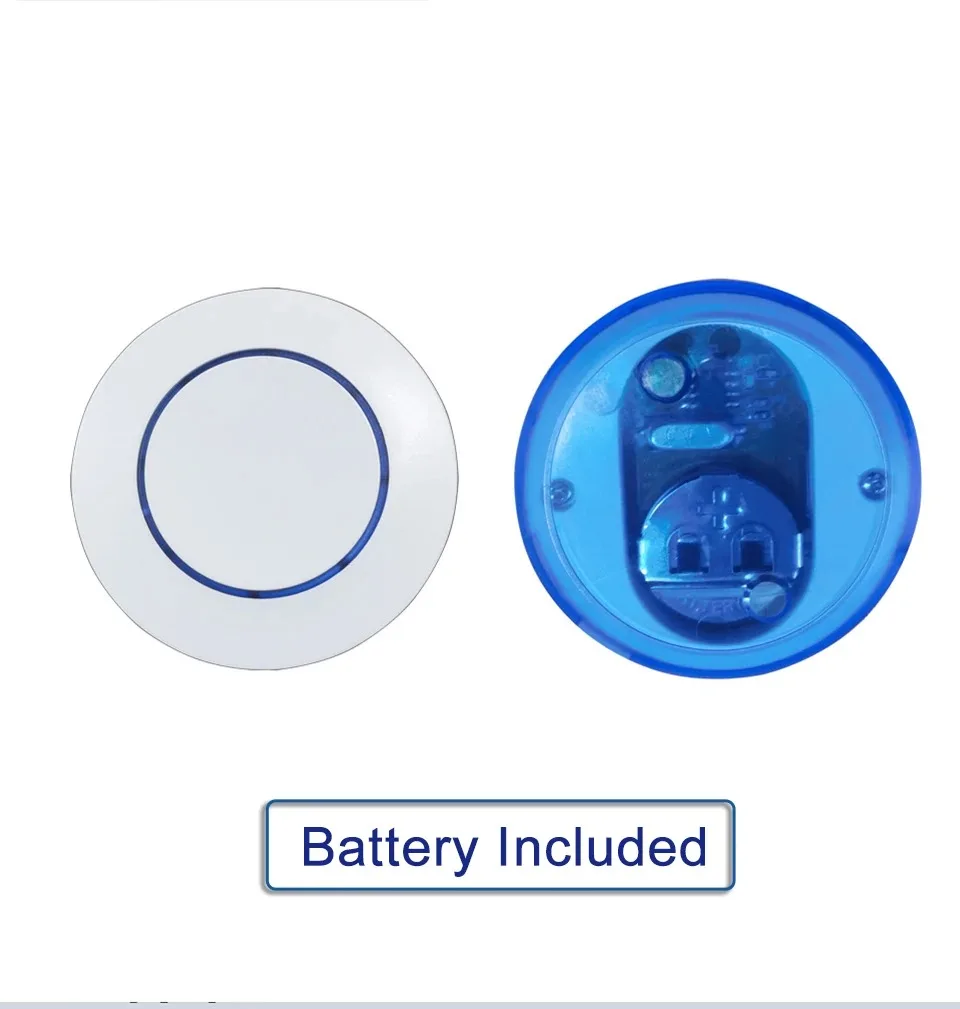

Transmitter (Remote) :
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Material: PVC;
Button: 2 buttons;

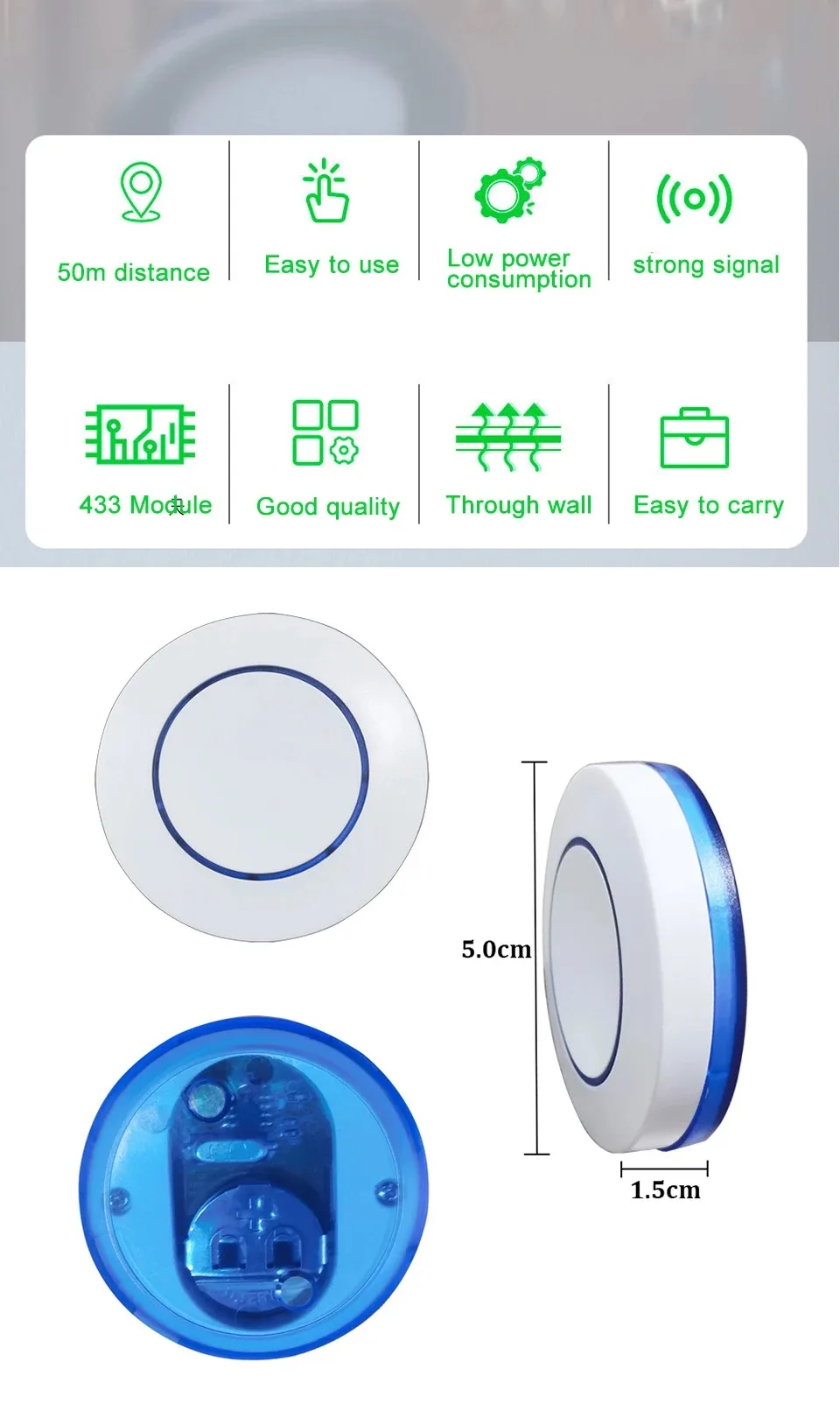

Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20~50m
Controller (Receiver) :
Input Power: AC85-240V 60HZ/50HZ
Max current: 10 A
RF Frequency: 433Mhz
Working temperature:-30~+80
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:10pcs
Support remote type: Learning code 1527code
Size: 47.4*42*22.8 (mm)
433MHZ wireless switch signals
How to get the signals
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals
Only one step :Press the learning button(on the Receiver) 8 times.
