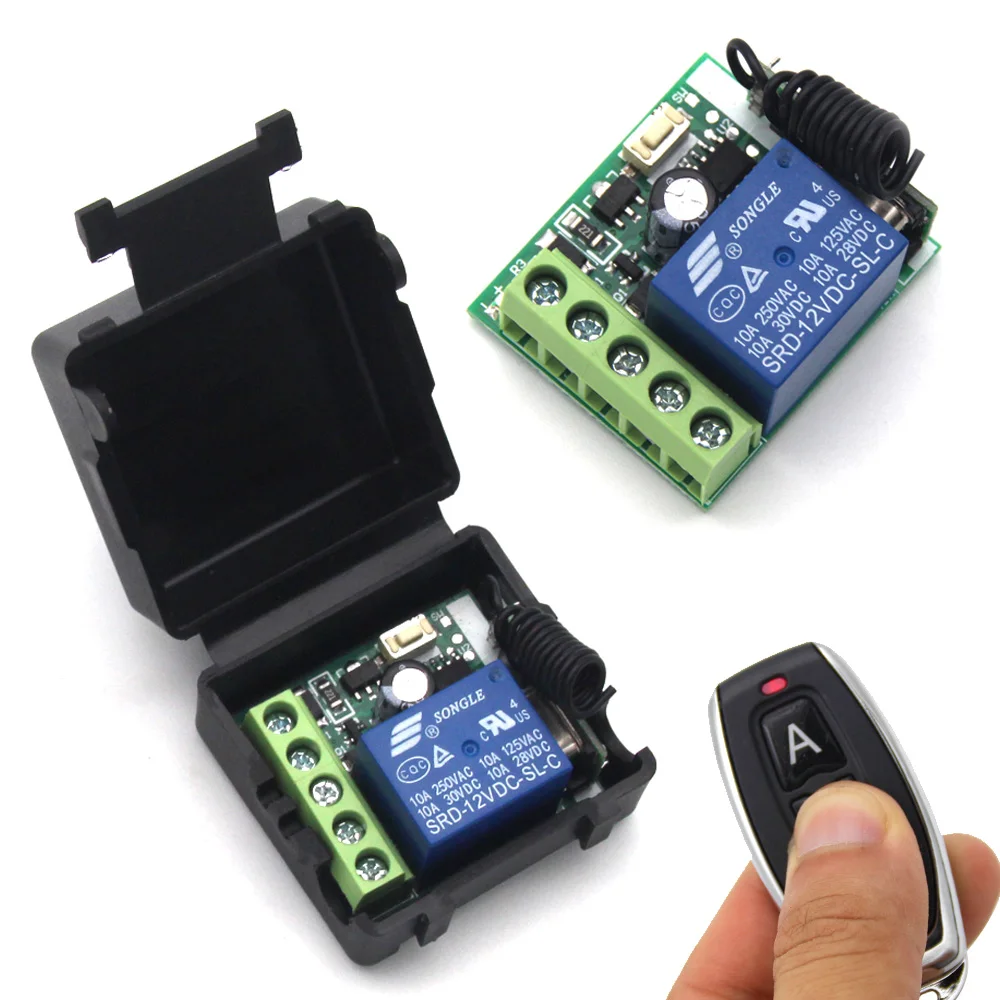

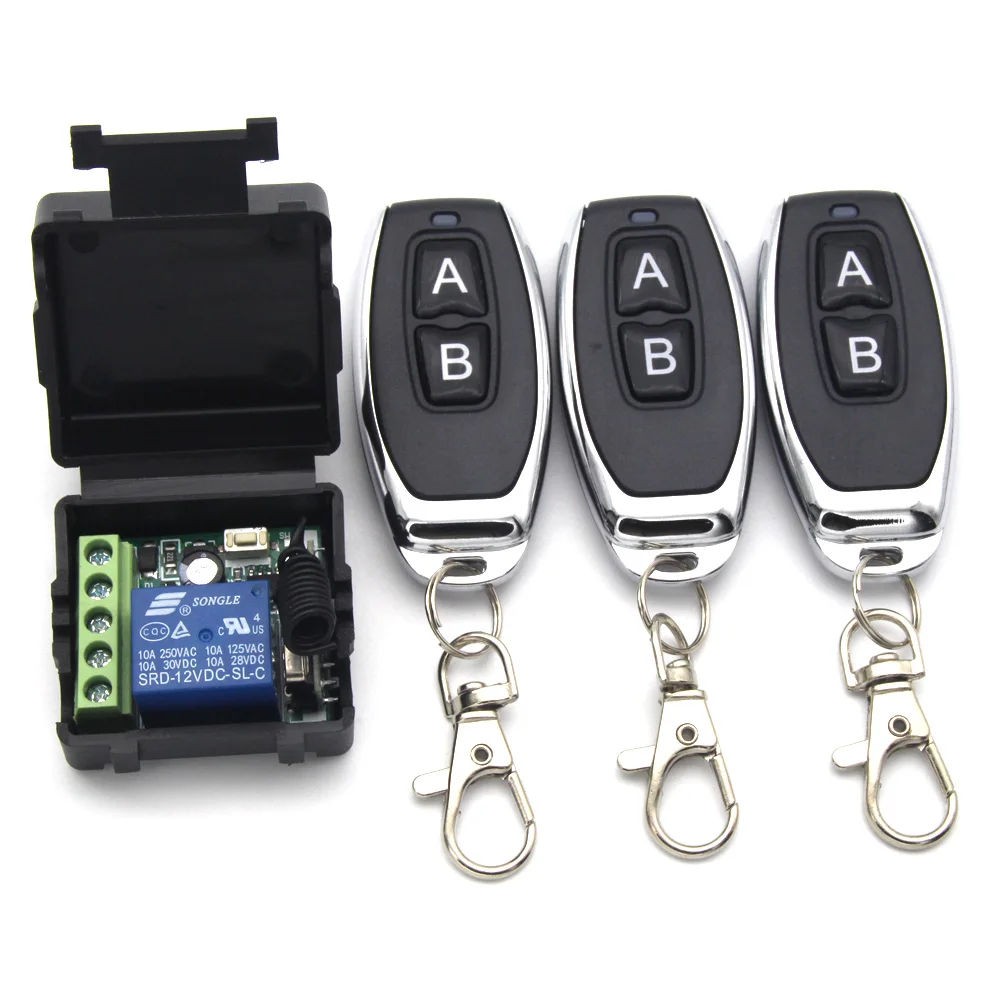

433Mhz Universal Wireless Remote Control Switch DC 12V 1 CH Channel Relay Receiver Module RF Transmitter 433Mhz Remote Controls
433Mhz Universal Wireless Remote Control Switch DC 12V 1 CH Channel Relay Receiver Module RF Transmitter 433Mhz Remote Controls
433Mhz Universal Wireless Remote Control Switch DC 12V 1 CH Channel Relay Receiver Module RF Transmitter 433Mhz Remote Controls
433Mhz Universal Wireless Remote Control Switch DC 12V 1 CH Channel Relay Receiver Module RF Transmitter 433Mhz Remote Controls
433Mhz Universal Wireless Remote Control Switch DC 12V 1 CH Channel Relay Receiver Module RF Transmitter 433Mhz Remote Controls
433Mhz Universal Wireless Remote Control Switch DC 12V 1 CH Channel Relay Receiver Module RF Transmitter 433Mhz Remote Controls
42853399691470
42853399822542
42853399888078
42853399986382
42853400084686

433Mhz Universal Wireless Remote Control Switch DC 12V 1 CH Channel Relay Receiver Module RF Transmitter 433Mhz Remote Controls

Regular price$6.72
/
Color
  • Free worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon

SPECIFICATIONS

Brand Name: Huaruiyu

Use: Universal

Use: Speaker

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Origin: Mainland China

Wireless Communication: RF

Certification: none

Frequency: 433 MHz

Channel: 1

Working Voltage: 12V

Quiescent Curren: 5mA

Output Terminal: NO , NC , COM

Modulation Mode: ASK

Receiving Sensitivity: >97dbm

Working temperature: -30 ~ +80

Matching Mode: Intelligent Learning code

RF working mode: superheterodyne

Size: 39*35*24 mm


Specifications Of The Receiver:

Model Number : KR1201A-4
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK
Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
Input Voltage: DC 10 ~ 14V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: >97dbm
Remote Control Range: >100m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )

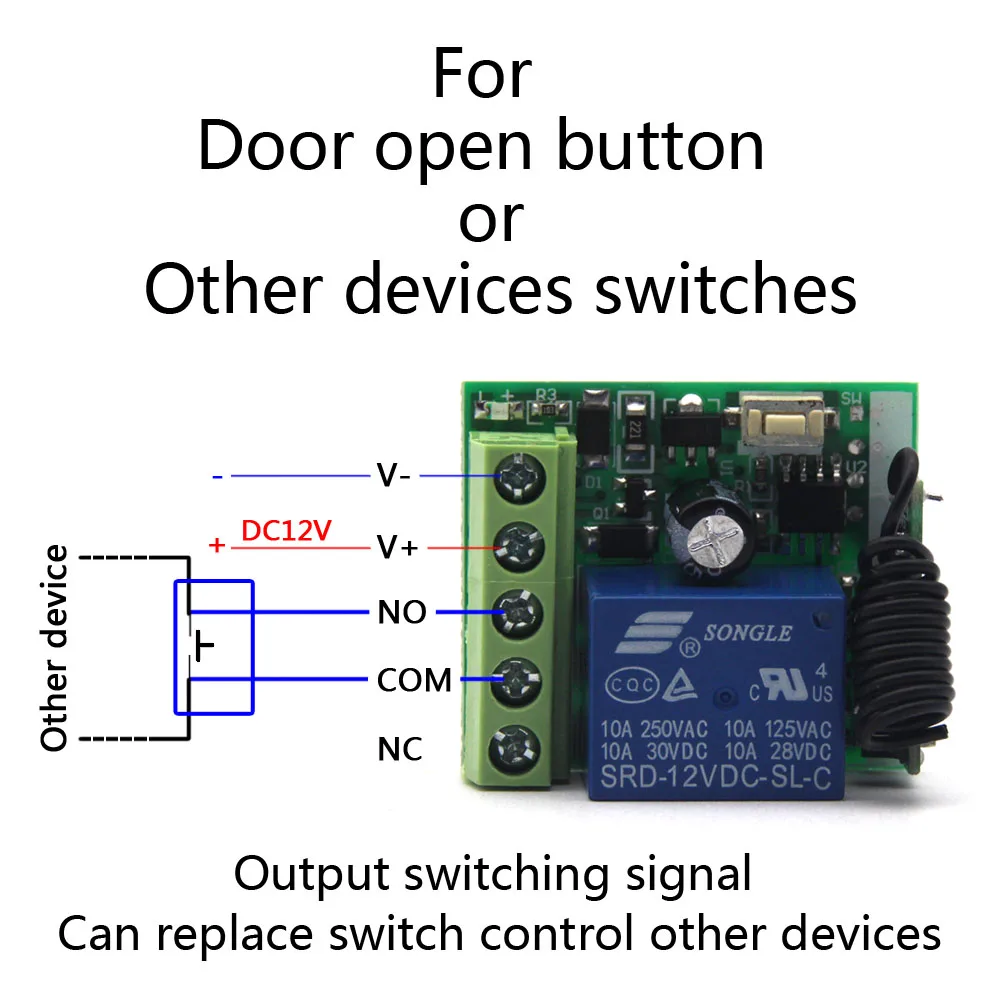

Wiring Diagram:

+V : 12V + (Input).
- V: 12V - (Input).
NO: Normal Open(Output).
COM:Common(Output).
NC: Normal Close(Output).


For Door open button or Other devices switches

Output switching signal
Can replace switch control other devices

Operation Introduction:

About Working Mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.

Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.

Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s.


Clearing the Code:
Press the Learning Button on the receivers for 8 times, the codes will be cleaned.
After cleaning the code, all the remote control cannot work any more.

Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF .
