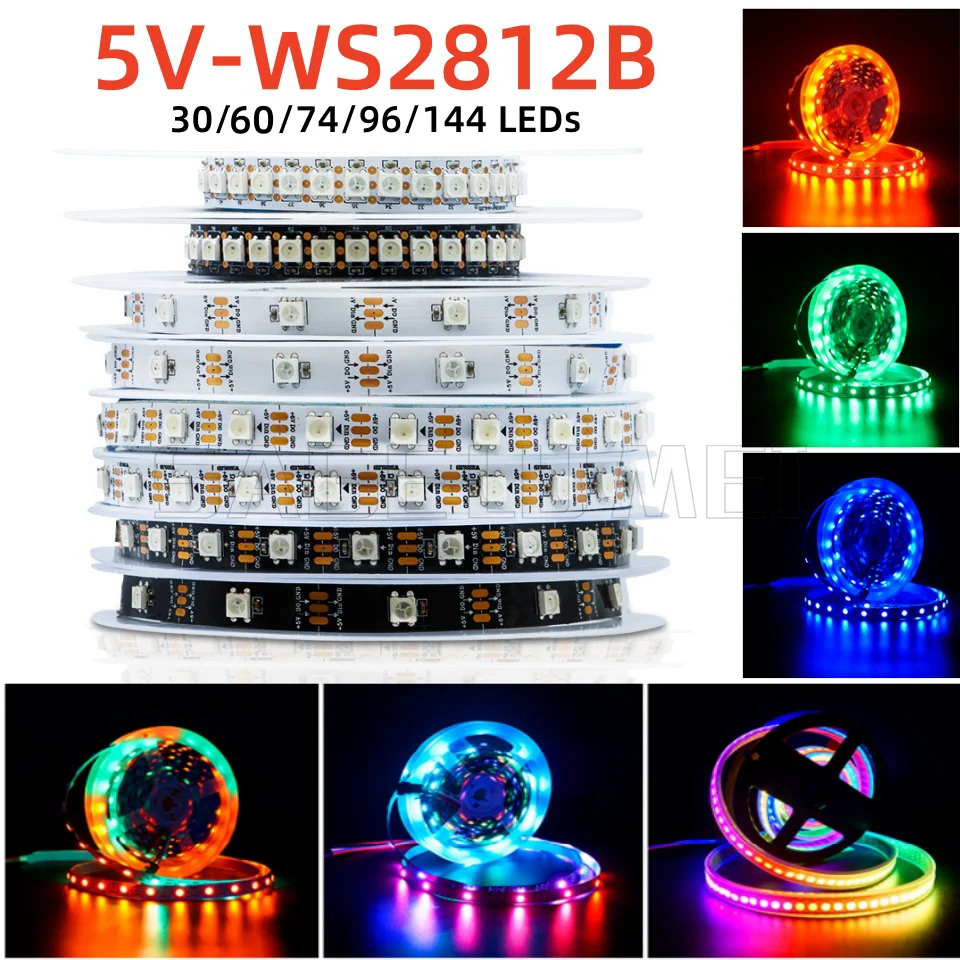

1m/3m/4m/5m DC5V WS2812B Led Strip 30/60/74/96/144 Leds Smart 5050 RGB Pixel Strip Black/White PCB IP30/65/67 WS2812IC Led Light
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Brand Name: SAGE LU MEI
Hign-concerned Chemical: None
Luminous Flux: 60-249
Power Source: DC
Origin: Mainland China
Certification: none
LED Chip Model: SMD5050
Waterproof: Yes
Specifications (light beads / m): 30/60/74/96/144
Item Type: Strip
Voltage: 5V
Note:
(Important: WS2812B Must Work With 5V LED Power Supply,Over DC5.5V Will Burn Led Strip)
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order!
2. WS2812B Led strip can be cut buy every "one" led chip!
3. IP30: Non- Waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
4. WS2812B Led Strip Work With DC5V Led Power Supply,And it must need a WS2812B Led Controller Control it
About how to choose Led Power
Calculated The Whole Led Strip Watts:
1.One Led Chip is About 0.2W,If You Buy is 5m 30Leds/m(Total Led Strip is 150Leds) ,So 0.2W*150=30W
2.And This Led Strip Work 5V,So 30W / 5V=6A,We Know This Led Strip Better at Least 6A......
Product Decsription:
3M it is 3Meters/Roll,
4M it is 4Meters/Roll,
5M it is 5Meters/Roll.
1. WS2812B Led Strip is Powered By "5V Power Supply" (Not Included) And Is Controlled By A Single Data Line From A Suitable Controller (Not Included).
2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.
3. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.
4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.
5. Do Not Bend Strip Sharply.
6. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.
7. 3-Pin JST Connector Wire is 20AWG.
Products Application:
WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.
Product Details:
Input Voltage: DC5V
Power: 30Leds/m----6Watt/meter
60Leds/m----12Watt/meter
74Leds/m----14.8Watt/meter
96Leds/m----19.8Watt/meter

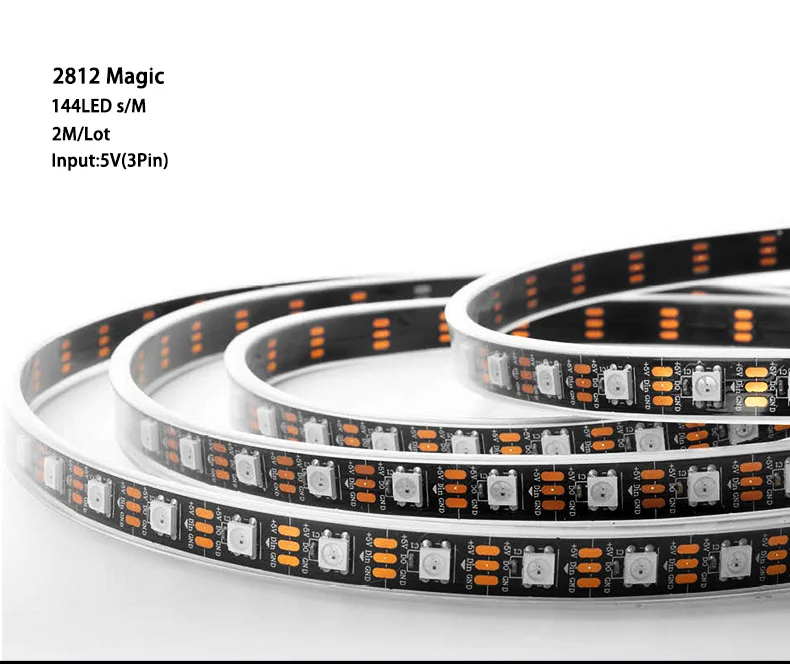

144Leds/m----28.8Watt/meter
LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip

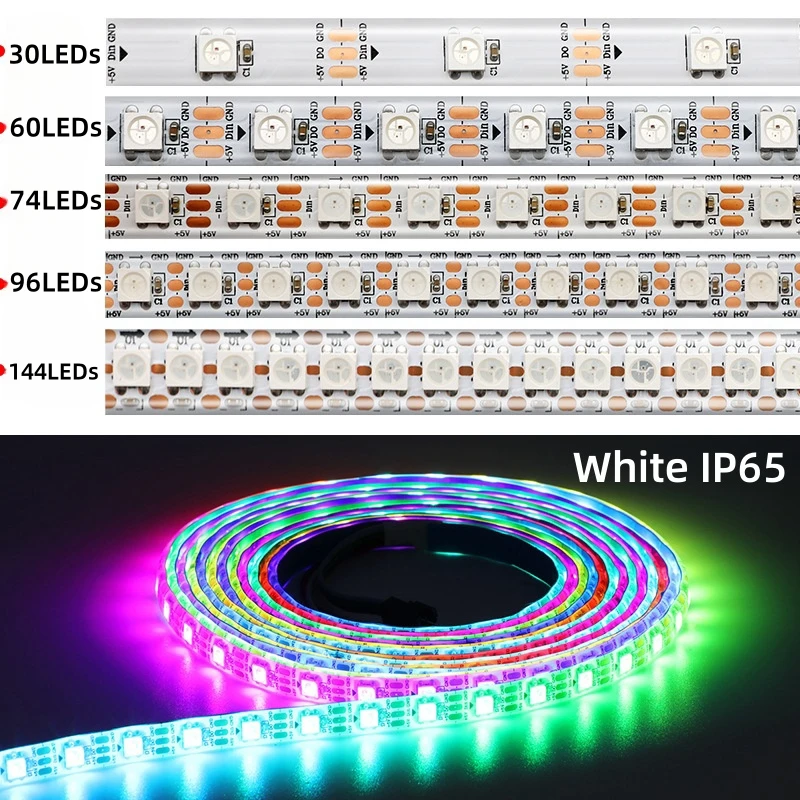

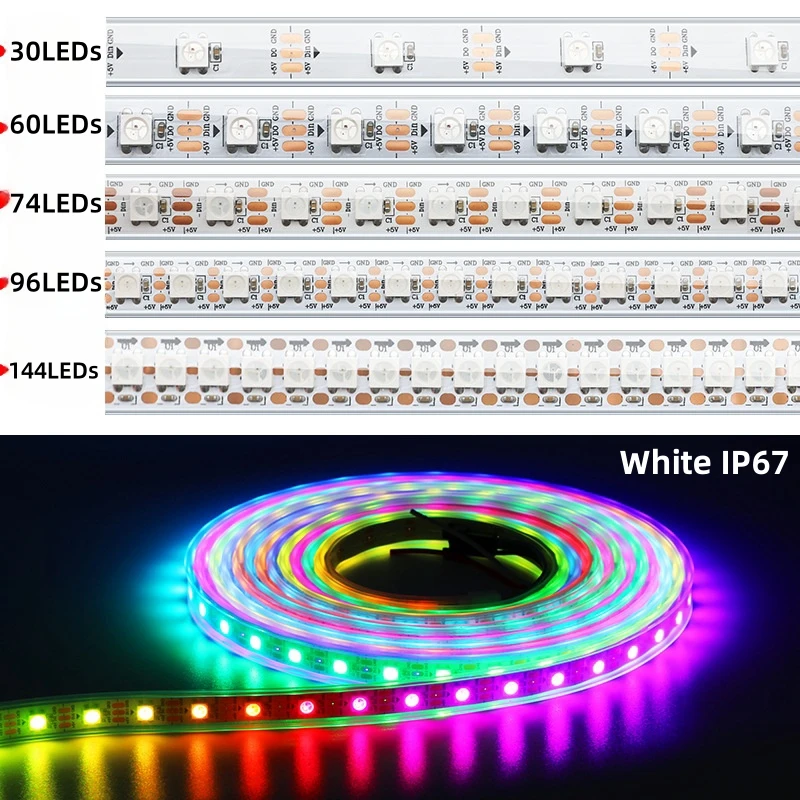

Pixels: 30/60/74/96/144/Meters
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color
FPC Width: 30Leds/m----10mm
60Leds/m----10mm
74Led/m---12mm
96Led/m---12mm
144Leds/m----12mm
FPC color: Black/White
Protection Rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
Package Include:
1m/3m/4m/5m(Opational) 5V WS2812B Led Strip
