Hole 6-20cm Garden Balcony Protection stainless steel 316 wire ROPE NET cable mesh anti falling climbing Bird Deer Dog fence
Hole 6-20cm Garden Balcony Protection stainless steel 316 wire ROPE NET cable mesh anti falling climbing Bird Deer Dog fence
Hole 6-20cm Garden Balcony Protection stainless steel 316 wire ROPE NET cable mesh anti falling climbing Bird Deer Dog fence
Hole 6-20cm Garden Balcony Protection stainless steel 316 wire ROPE NET cable mesh anti falling climbing Bird Deer Dog fence
Hole 6-20cm Garden Balcony Protection stainless steel 316 wire ROPE NET cable mesh anti falling climbing Bird Deer Dog fence

Hole 6-20cm Garden Balcony Protection stainless steel 316 wire ROPE NET cable mesh anti falling climbing Bird Deer Dog fence

$36.10
/
Color
Size
  • Free worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon

SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Material: Metal

Origin: Mainland China

Set Type: no

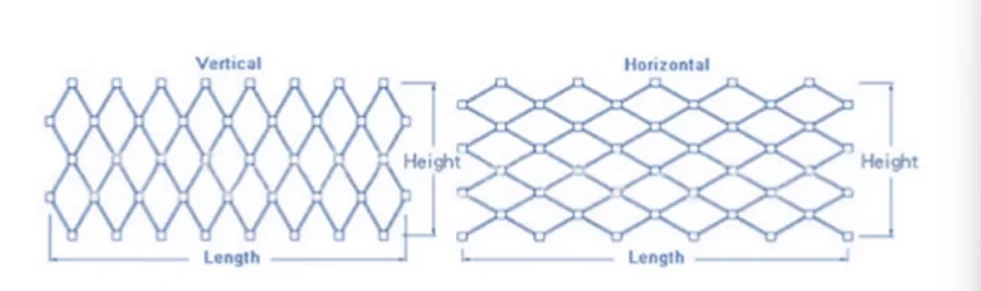

Length x width: Customized

Rope diameter: 1.5mm 1.8mm 2.0mm 2.5mm 3.0mm

Material: SS316

Hole size: 2-20cm

Weight: 0.07-0.5kg

Default producing type: ferruled

The Min Order Quantity is  1 square meters.

If you order N pieces,Default size is 1 meter wide xN meters long.

Or tell us your size please! For example 1.2x5meters, 2.5x3meters, or 3x3meters!

Other diameter of rope, And opening size, Can be customized.


If you want to order H5 type,

Need to order alone addtional item in the specification list .



Some of the Thick small hole, You can find it here.Click it.

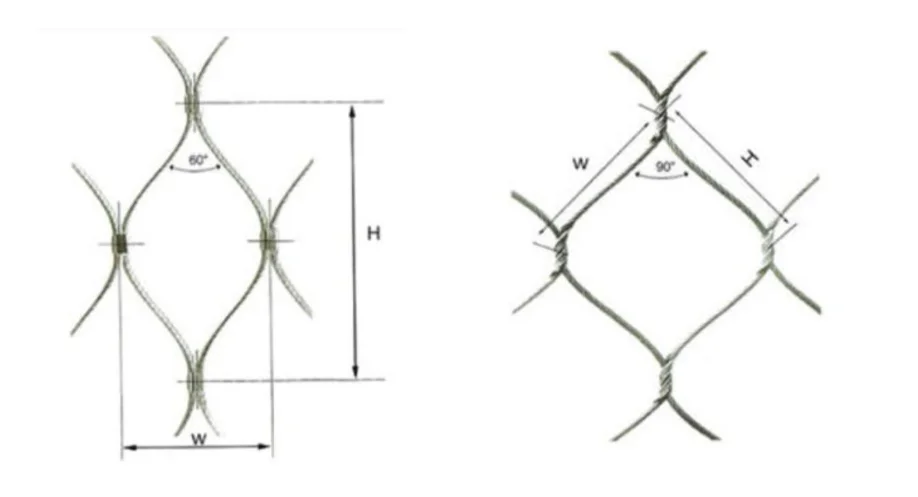

 stainless steel rope mesh Types: knotted rope mesh ( or woven rope mesh ) and ferrule rope mesh

( clips can be stainless steel or aluminum materia )

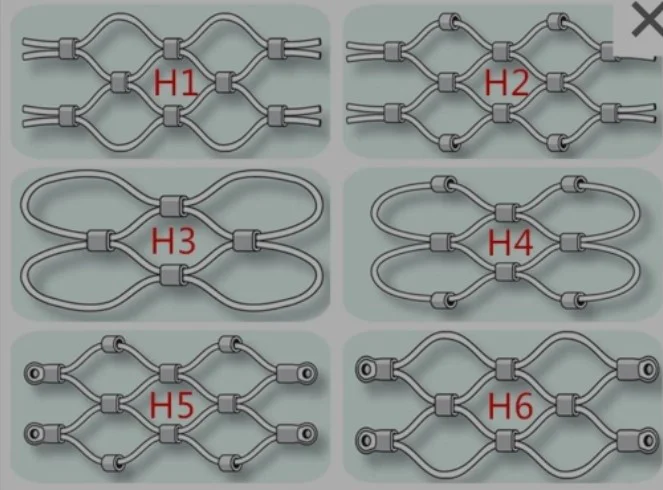

Stainless steel cable mesh(inner -woven type),Ending type(H1-H6),

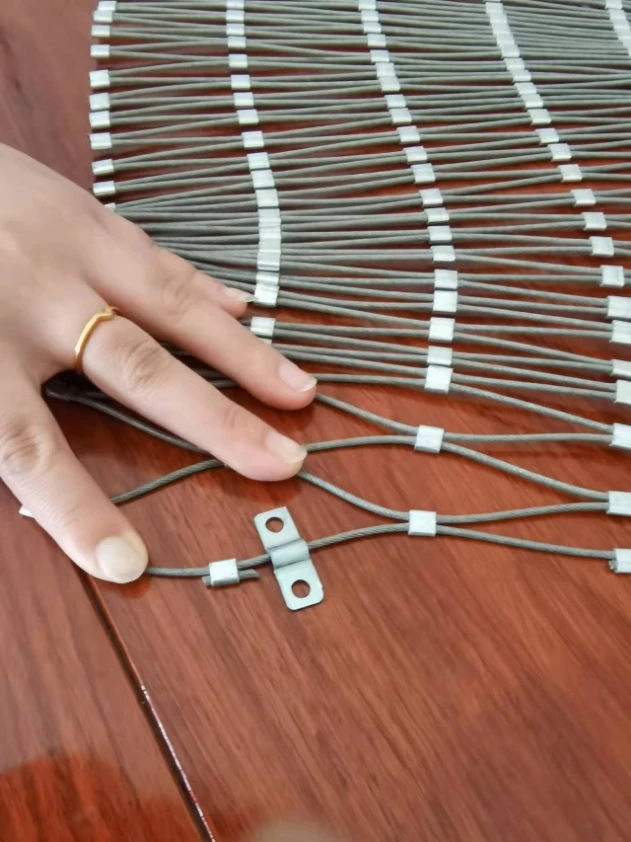

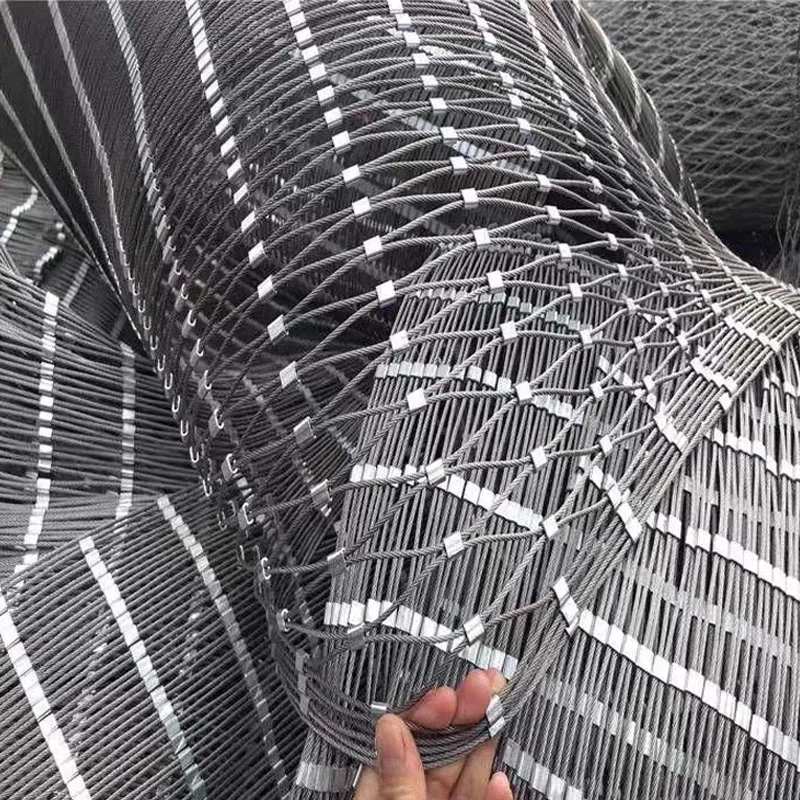

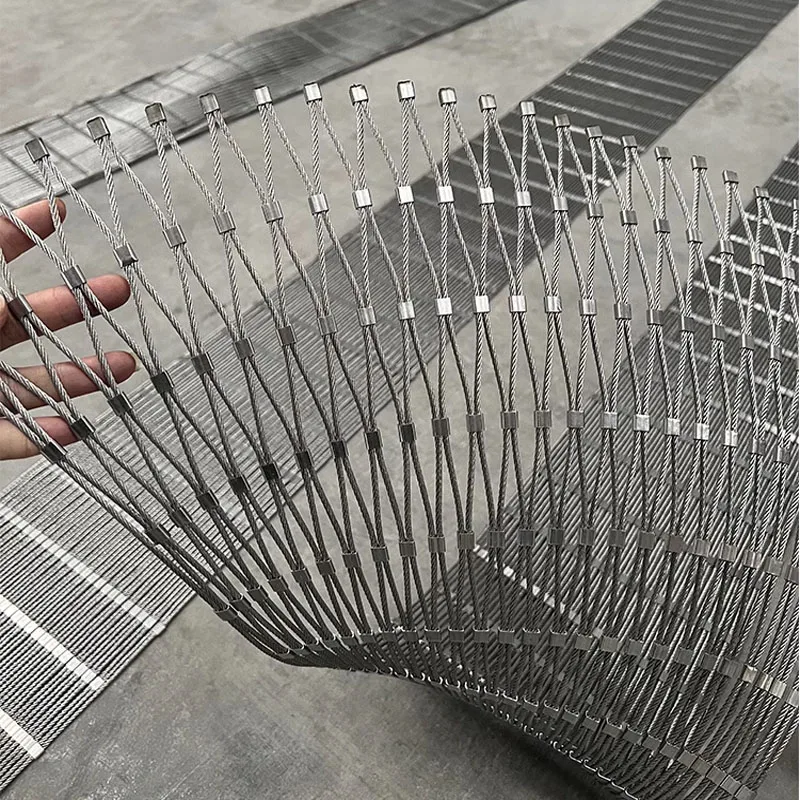

stainless steel ferrule rope mesh

1:Flexible stainless steel cable mesh (Inter-woven type)

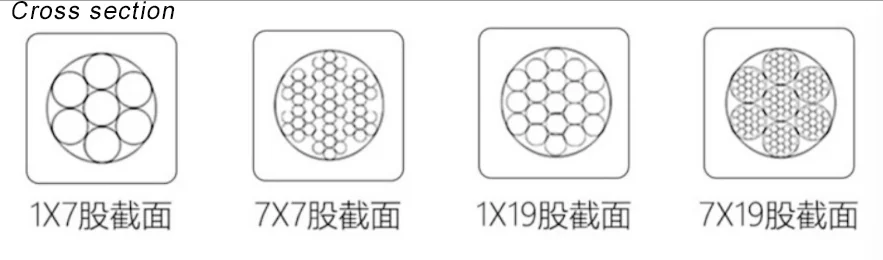

Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven

mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope .The rope construction is 7 x 7 or

7 x 19 and made from AISI 304 or AISI 316 material group.This mesh has strong tensile strength , high flexibility,high transparence

and wide span.The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like

practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and architect all over the world.

The specification of stainless steel knotted rope mesh

Code

Rope Construction

Rope Diameter

Opening Size

Breaking Force

Inch

mm

Inch

mm

KN

BR-01

              7 × 19

      1/8

         3.2

    4.7" × 4.7"

      120 × 120

            7.38

BR-02

             7 × 19

      1/8

         3.2

      4" × 4"

     102 × 102

           7.38

BR-03

            7 × 19

      1/8

         3.2

    3.6" × 3.6"

        90 × 90

           7.38

BR-04

            7 × 19

      1/8

         3.2

     3" × 3"

        76 × 76

           7.38

BR-05

            7 × 19

      1/8

         3.2

      2" × 2"

        51 × 51

           7.38

BR-06

             7 × 7

     3/32

         2.4

       4" × 4"

     102 × 102

           4.18

BR-07

             7 × 7

     3/32

         2.4

     3.6" × 3.6"

        90 × 90

           4.18

BR-08

             7 × 7

      3/32

         2.4

       3" × 3"

        76 × 76

          4.18

BR-09

            7 × 7

      3/32

         2.4

     2.4" × 2.4"

        60 × 60

          4.18

BR-10

            7 × 7

      3/32

         2.4

        2" × 2"

        51 × 51

           4.18

BR-11

                 7 × 7

      5/64

           2

        3" × 3"

        76 × 76

           3.17

BR-12

                 7 × 7

      5/64

           2

     2.4" × 2.4"

        60 × 60

           3.17

BR-13

                7 × 7

      5/64

           2

        2" × 2"

        51 × 51

            3.17

BR-14

                 7 × 7

      5/64

           2

     1.5" × 1.5"

       38 × 38

            3.17

BR-15

                 7 × 7

      1/16

        1.6

        3" × 3"

       76 × 76

            2.17

BR-16

                7 × 7

      1/16

        1.6

        2" × 2"

       51 × 51

             2.17

BR-17

                7 × 7

      1/16

         1.6

      1.5" × 1.5"

      38 × 38

             2.17

BR-18

                7 × 7

      1/16

         1.6

      1.2" × 1.2"

      30 × 30

             2.17

BR-19

                7 × 7

      1/16

         1.6

        1" × 1"

      25 × 25

             2.17

BR-20

                7 × 7

      3/64

           1.2

         2" × 2"

      51 × 51

             1.22

BR-21

                7 × 7

      3/64

           1.2

      1.5" × 1.5"

      38 × 38

             1.22

BR-22

                7 × 7

      3/64

           1.2

      1.2" × 1.2"

      30 × 30

             1.22

BR-23

                7 × 7

      3/64

           1.2

        1" × 1"

      25 × 25

             1.22

BR-24

               7 × 7

      3/64

           1.2

     0.8" × 0.8"

      20 × 20

             1.22

2:Flexible stainless steel cable mesh (Ferrule type)

Our flexible stainless steel cable mesh are supplied in two main series : Inter-woven and Ferrule. Our mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc and two main strand structures:7*7 and 7*19.cable dia.1mm-4mm and mesh size:20mm-160mm. The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule.
The ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.


The specification of stainless steel ferrule rope mesh

Code

Rope Construction

Rope Diameter

Aperture

Breaking Force

Inch

mm

mm

kN

BR-01

               7 × 19

           1/8

           3.2

          120 × 208

               7.38

BR-02

               7 × 19

           1/8

           3.2

          100 × 173

               7.38

BR-03

               7 × 19

           1/8

           3.2

           90 × 156

               7.38

BR-04

                7 × 7

           3/32

           2.4

          100 × 173

               4.18

BR-05

                7 × 7

           3/32

           2.4

           90 × 156

               4.18

BR-06

                7 × 7

           3/32

           2.4

           80 × 139

               4.18

BR-07

                7 × 7

           3/32

           2.4

           70 × 121

               4.18

BR-08

                7 × 7

          5/64

           2.0

          100 × 173

               3.17

BR-09

               7 × 7

          5/64

           2.0

            90 × 156

               3.17

BR-10

               7 × 7

          5/64

           2.0

            80 × 139

               3.17

BR-11

               7 × 7

          5/64

           2.0

            70 × 121

               3.17

BR-12

               7 × 7

          1/16

           1.6

            80 × 139

               2.17

BR-13

              7 × 7

          1/16

           1.6

            70 × 121

               2.17

BR-14

              7 × 7

          1/16

           1.6

            60 × 104

               2.17

BR-15

              7 × 7

          1/16

           1.6

            51 × 87

               2.17

BR-16

             7 × 7

          3/64

           1.2

            80 × 139

               1.22

BR-17

             7 × 7

          3/64

           1.2

            60 × 104

               1.22

BR-18

             7 × 7

          3/64

           1.2

            50 × 87

               1.22

BR-19

            7 × 7

          3/64

           1.2

            40 × 69

               1.22





The application of stainless steel rope mesh

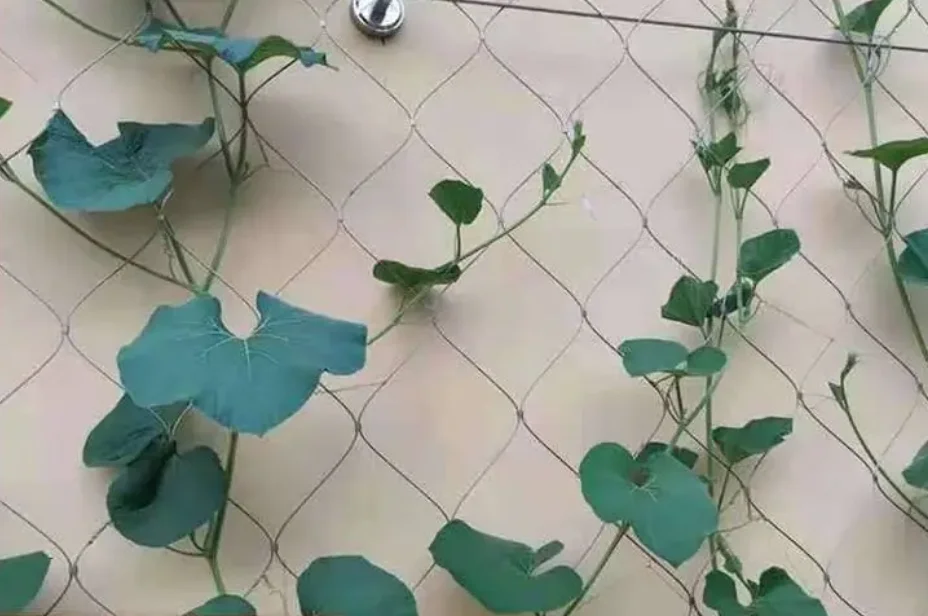

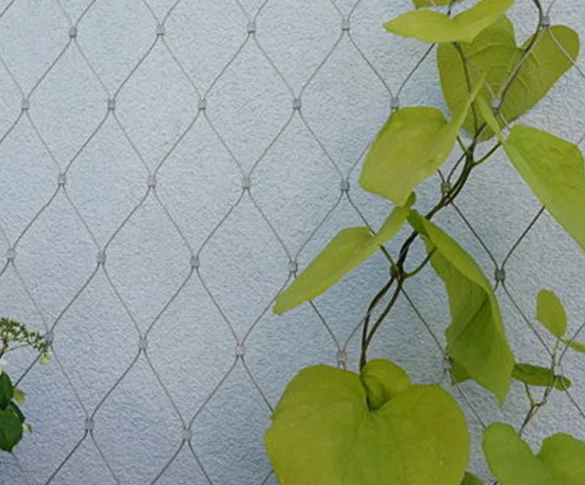

1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

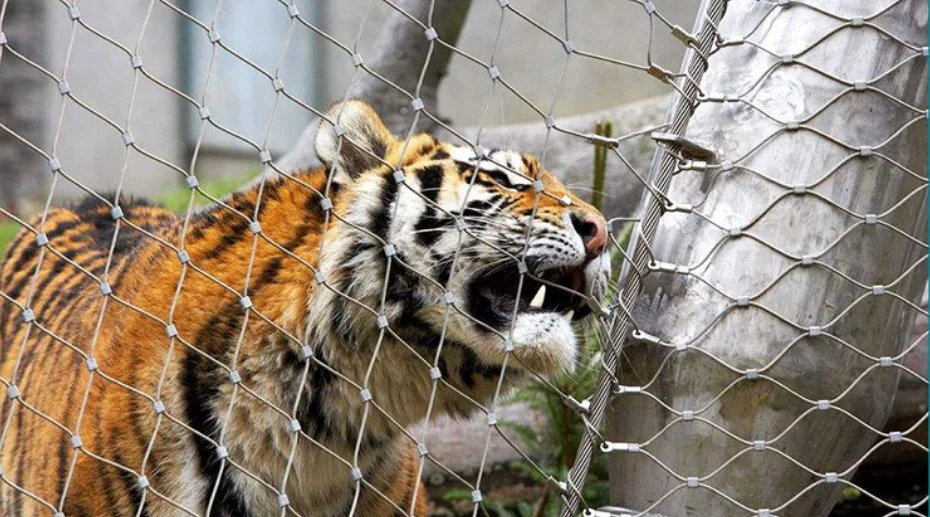

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

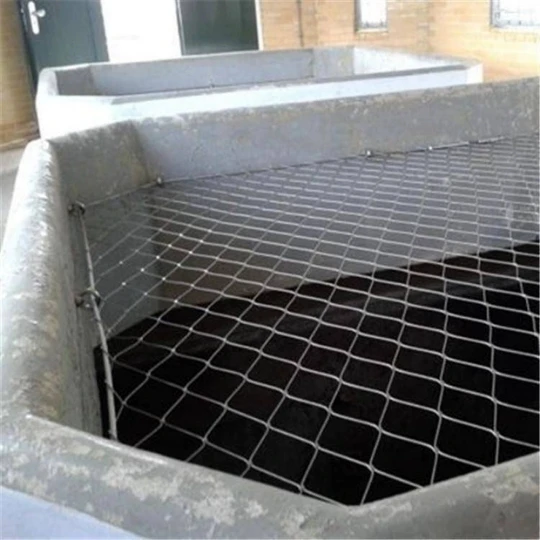

5. Safety Net - Structural Measure to Prevent Suicide

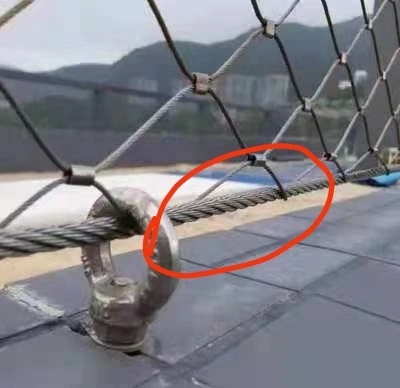

6. Cable Mesh - Excellent Solution to Safety

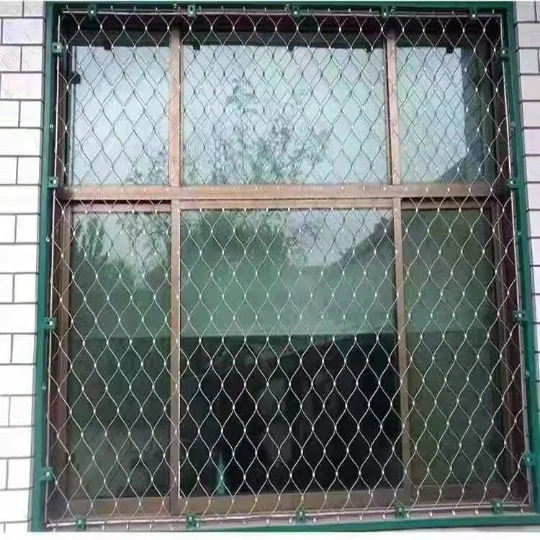

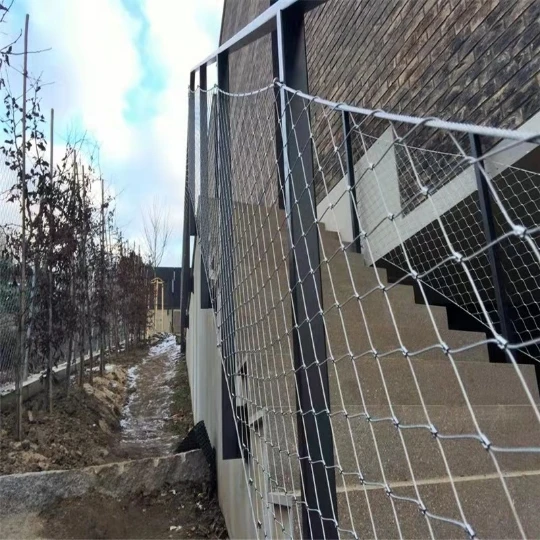

7. Steel Mesh Balustrade - bridge, stair, balcony, path

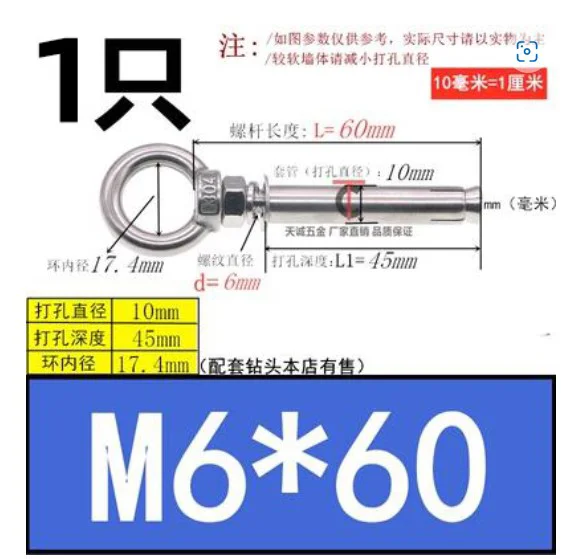

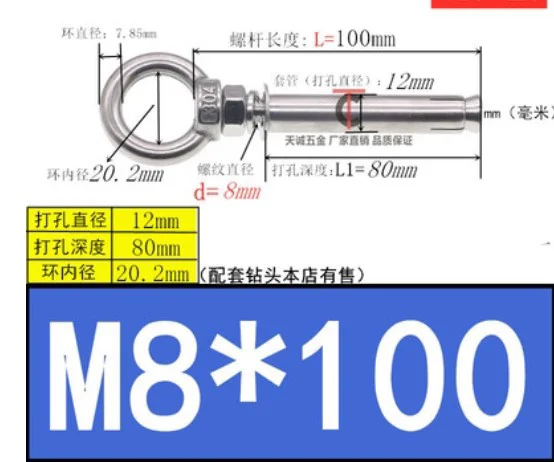

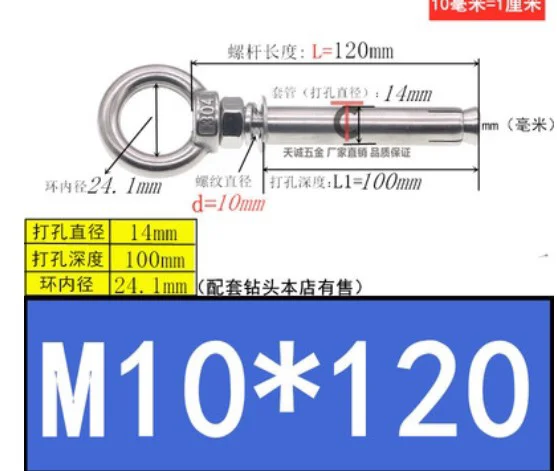

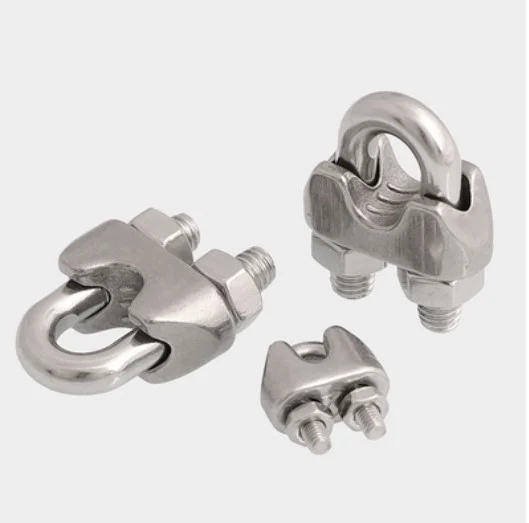

Many kinds of accessories, Can contact with us to choose! Or click the below pictures.
