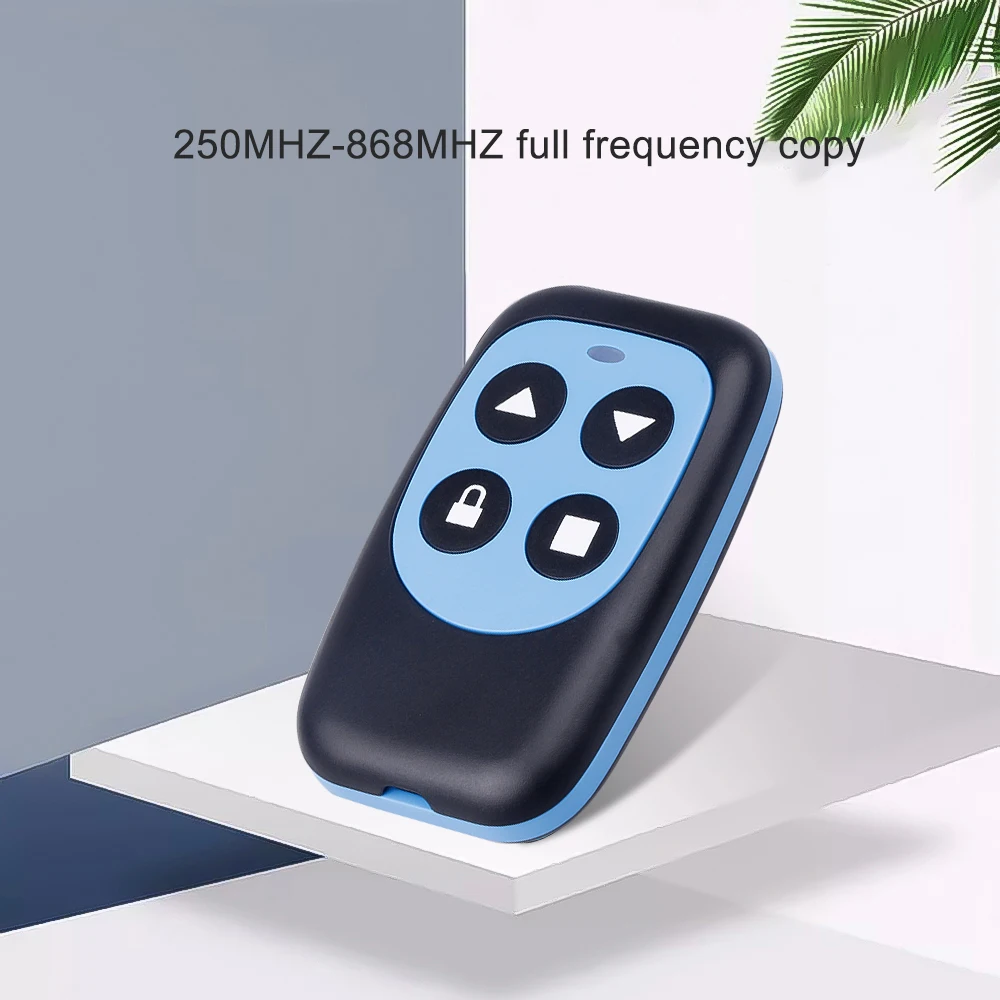

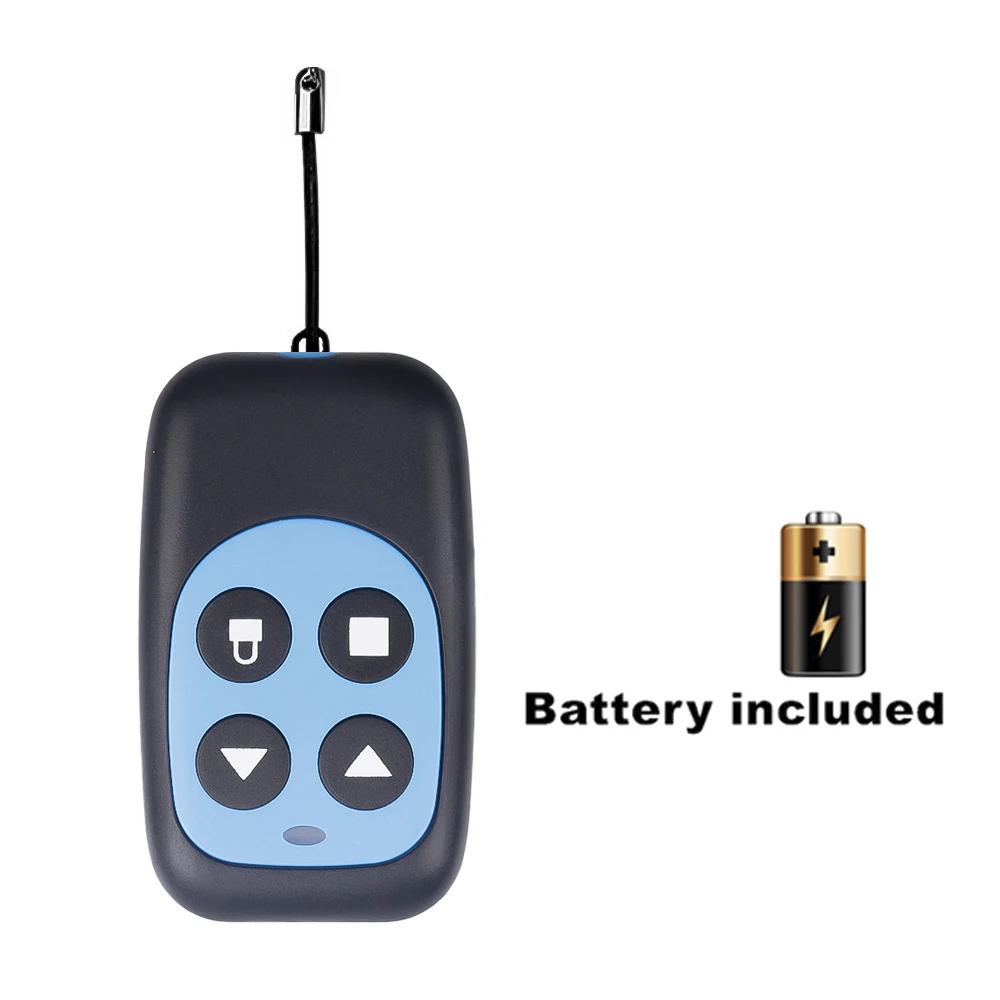

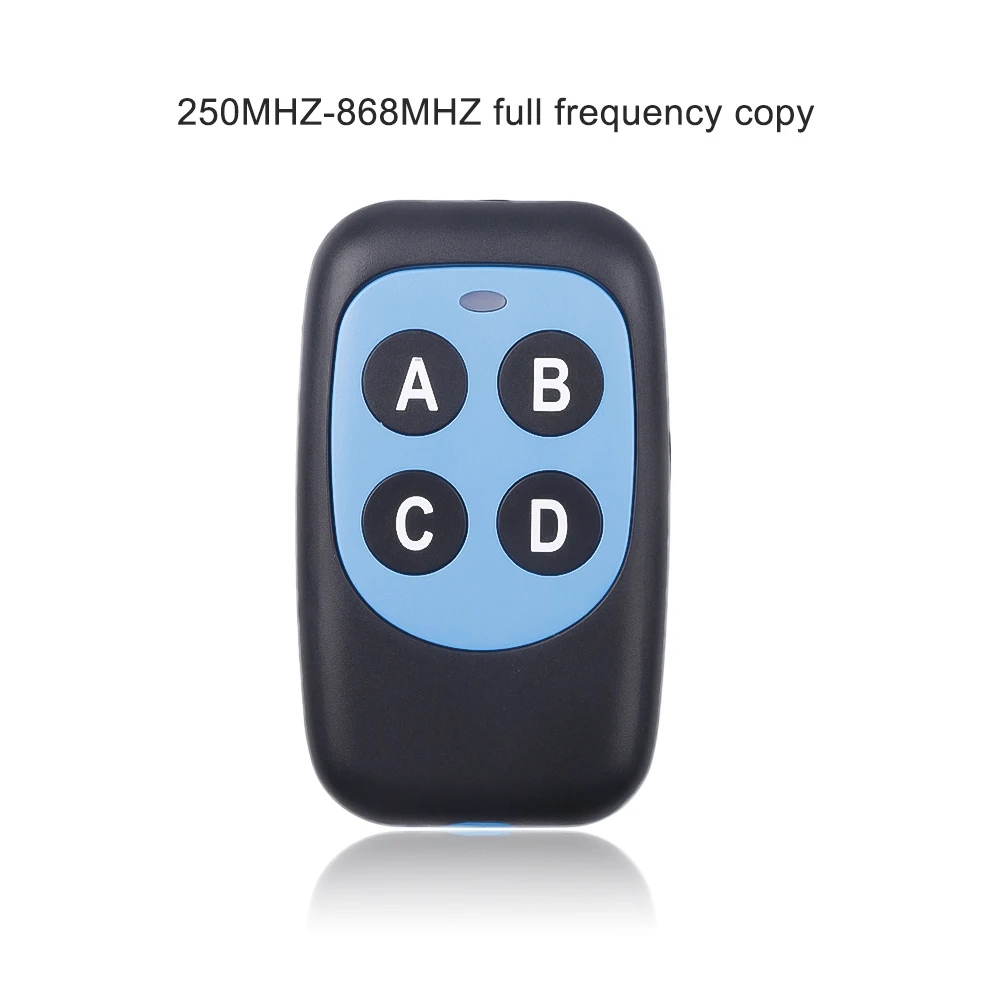

250-868MHz Multi Frequency Remote Control 315/433Mhz Auto Copy Duplicator for Home Electric Garage Door Gate Opener Key
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Brand Name: kebidu
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Origin: Mainland China
Hign-concerned Chemical: None
Wireless Communication: RF
Support APP: No
Certification: CE
Frequency: 433 MHz
Channel: 4
Package: No
Model Number: 250-868 Mhz multi frequency remote control
Model: 315Mhz 433MHZ remote control duplicator
Working frequency: multi-frequency 282-868MHZ
size: 62*37*14mm
Feature 1: 433 mhz remote control
Features 2: 315 mhz remote control
Features 3: universal remote control
Features 4: For home appliance
Features 5: Universal multifrequency garage remote
Features 6: remote control duplicator
Features 7: Remote control for gate
Features 8: universal garage door control
Features 9: Universal garage control
Features 10: multi-frequency universal garage control
Features 11: multifrequency duplicator remote control
Features 12: remote control for electric gate
Features 13: 868mhz remote control
The copyable chip model has a learning range:
1. HT-12E, 2. AX5326-3, 3. AX5326-4, 4. AX5026, 5. PT2262, 6. PT2242, 7. HT600, 8. HT680, 9. HT6207, 10. HT6010, 11. HT6012 12. HT6014, 13. MC145026, 14. HT640, 15.EV1527, 16.527, 17.PT2260, 18.SMC918, 19.SMC926, 20.HT12D, 21.PT2240B
Duplication and regeneration of wireless remote controls for barriers, garage doors, etc.
The scope of application of copy remote control:

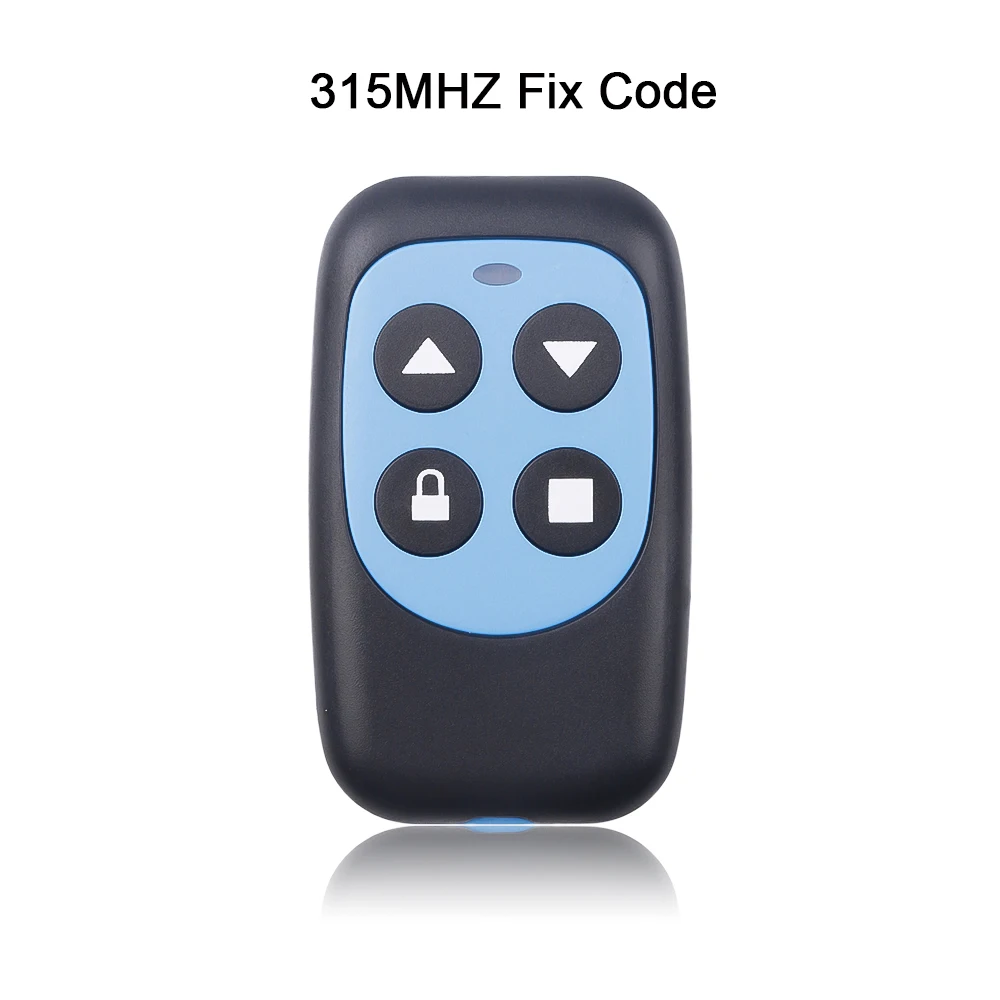

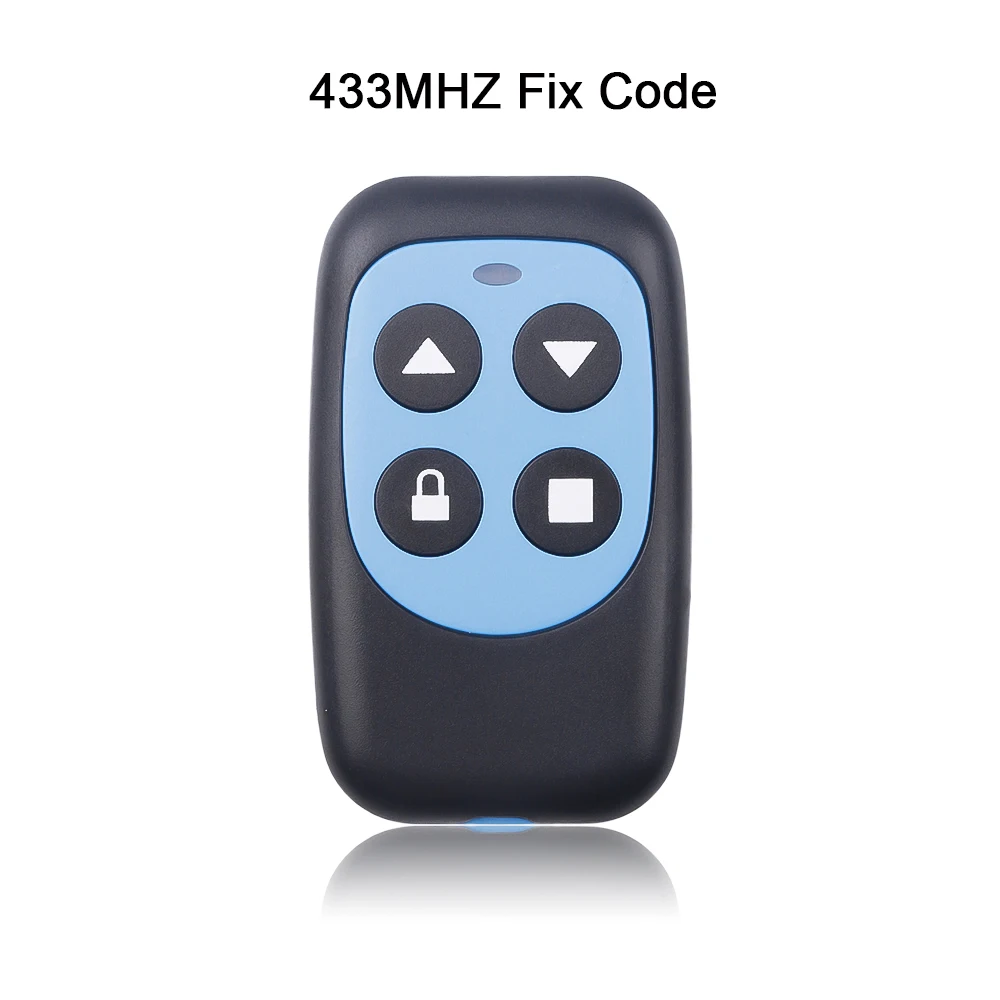

Ordinary fixed code (chip type 2260, 2262, 2264), learning code (1527, 2240) remote control.
technical parameter:

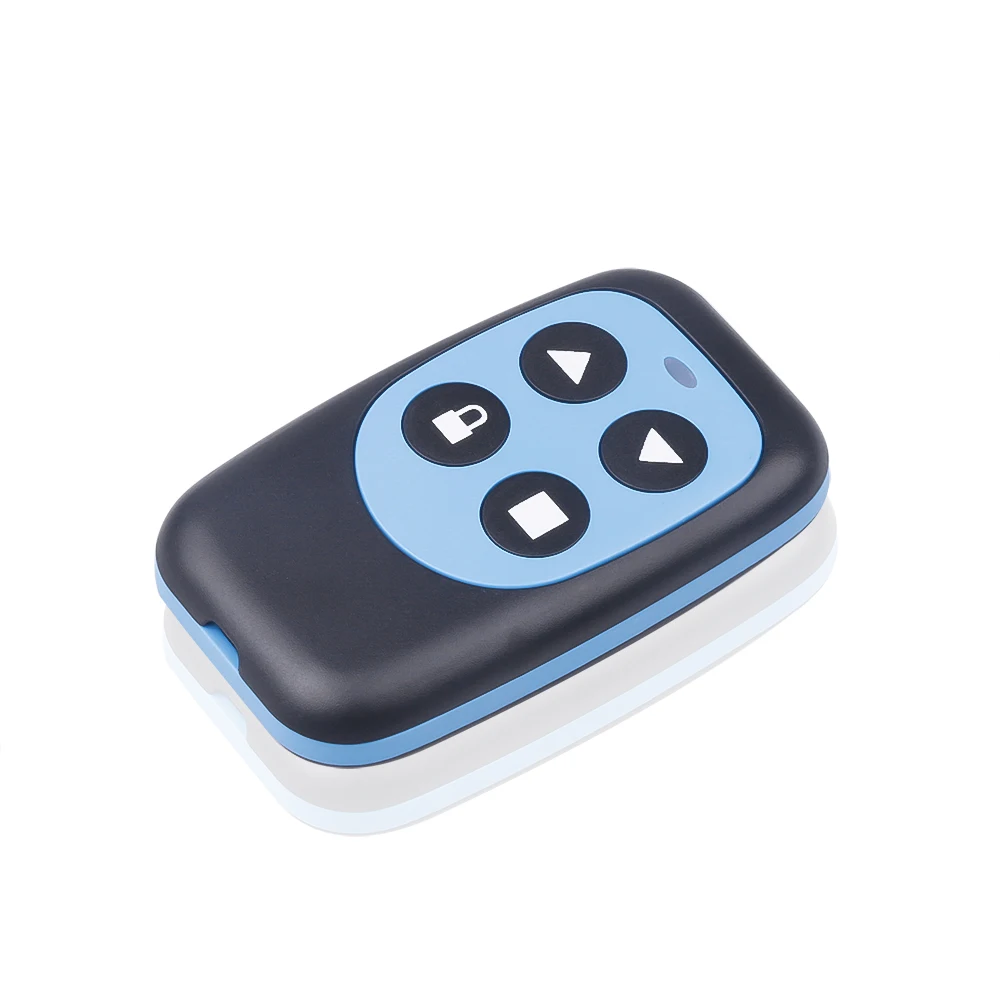

Product name: Multi-frequency four-button copy remote control
Working voltage: 6V
Encoding type: copy, copy

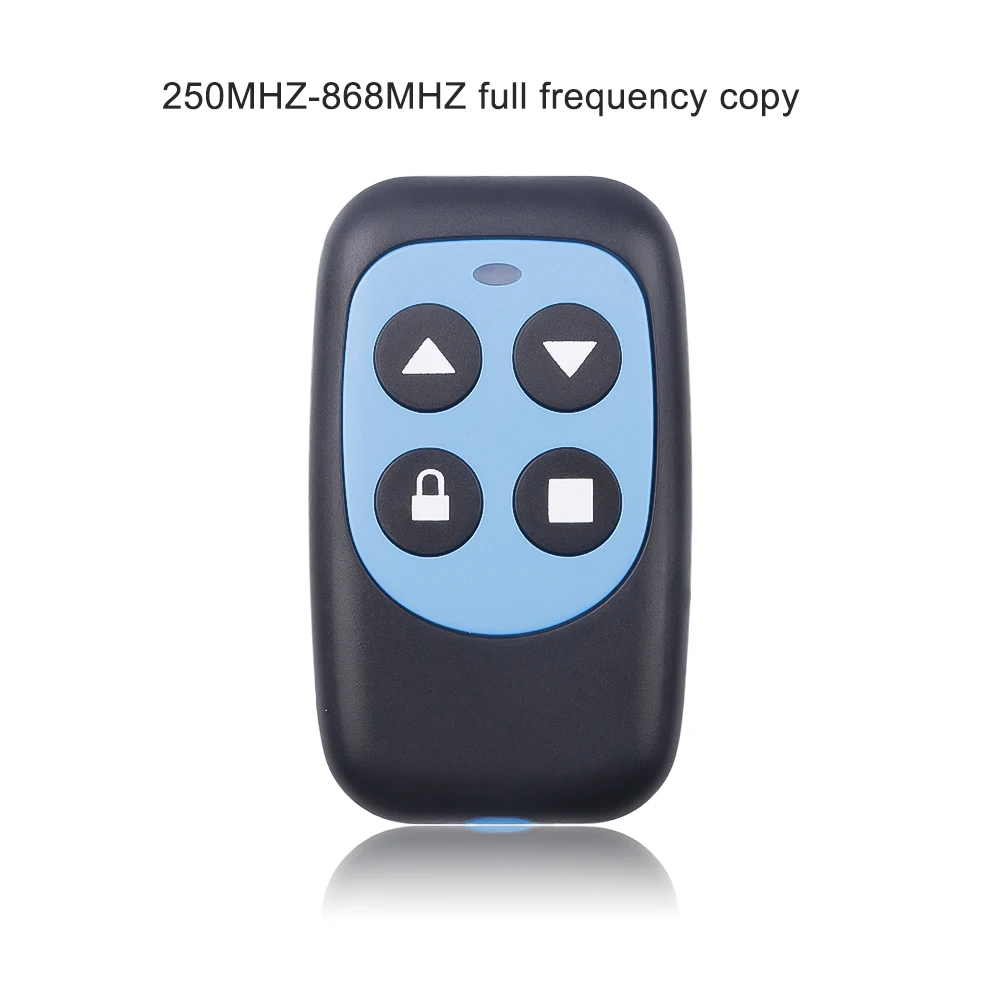

Working frequency: multi-frequency 250-868MHZ
Number of keys: four keys
Product size: 62*37*14MM
Operation method:
1. Code pairing
Place the original remote control and the copy remote control as close as possible, first press a button of the original remote control, and immediately after the indicator light turns on, press and hold a button of the self-copy remote control for about three seconds, the LED will flash 3 times and then quickly Flashing, it means that the address code of the original remote control button has been learned successfully. The other keys are operated in the same way for learning.
2, clear code
Press the unlock button and the lock button at the same time for 2 seconds, the LED light will start to flash 3 times. At this time, keep the lock button pressed and release the unlock button. Press the unlock button three or four times within 5 seconds, and the indicator light flashes quickly, which indicates The code has been cleared.
Test whether the existing code of the remote control has been successfully cleared: When you finish the clearing action, you can press any button of the copy remote control. If the LED does not flash immediately at this time, it will flash after 2 seconds, that means The original code of the copied remote control has been completely cleared. If the LED still flashes quickly and immediately, the code still exists and needs to be cleared again.
3, restore the cleared code
The copy remote control has a recovery function. If you accidentally clear the address code of the normal copy remote control during use, you can press the start and mute buttons (the next two buttons) on the remote control at the same time. After about three seconds, the LED will flash 3 times. It starts to flash quickly, which means that the cleared address code is successfully restored.
*Precautions:
1. Before using our copy remote control to copy, first clear the existing code of the self-copy remote control.
2. The self-copy remote control cannot copy the rolling code, such as HCS301.
